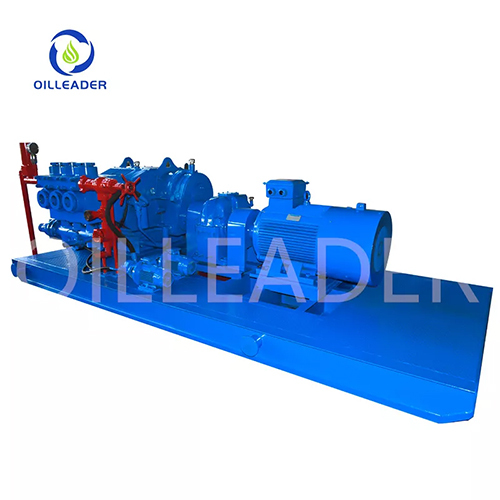

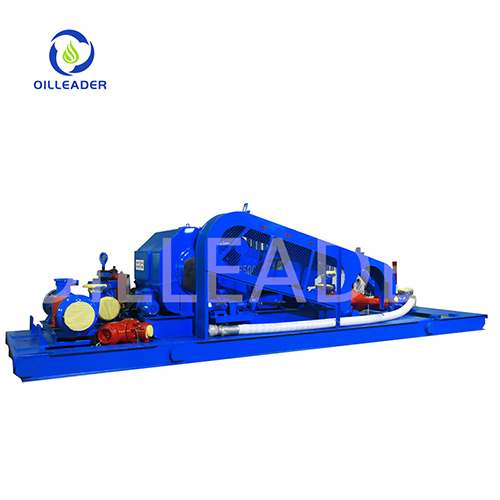

F1600 1600HP API Crude Oil Drilling Mud Pump For Drilling Rig
Product Details:
- Size Different available
- Usage Industrial
- Material Stainless Steel
- Suction Type Normal
- Seals Type Sealed
- Click to View more
X
F1600 1600HP API Crude Oil Drilling Mud Pump For Drilling Rig Price And Quantity
- 1 Unit
F1600 1600HP API Crude Oil Drilling Mud Pump For Drilling Rig Product Specifications
- Normal
- Sealed
- Stainless Steel
- Industrial
- Different available
F1600 1600HP API Crude Oil Drilling Mud Pump For Drilling Rig Trade Information
- All India
Product Description
The F1600 1600HP API Crude Oil Drilling Mud Pump is a high-performance pump designed for use in drilling rigs. The pump is made of high-quality stainless steel material and is available in different sizes to meet various industrial requirements. It features a normal suction type and sealed seals type, making it suitable for use in harsh environments. With a power output of 1600HP, this mud pump is capable of delivering high-pressure mud to the drilling bit to maintain the stability of the wellbore during drilling operations. This pump is perfect for drilling oil wells and is highly effective in handling crude oil.
Overview
- Applicable Industries : Construction works , Energy & Mining
- Showroom Location : Egypt, India, Argentina, Kazakhstan, Uzbekistan
- Video outgoing-inspection : Provided
- Machinery Test Report : Provided
- Marketing Type :Hot Product 2020
- Warranty of core components : 1 Year
- Core Components :Pressure vessel, Pump, Gear, Bearing, Engine, Motor
- Brand Name: Oilleader
- Condition : New
- Warranty :1 Year
- Type : Drill Mud Pump
- Model Number : F-1300
- Type : Horizontal Triplex Single Acting Piston Pump
- Rated Input Power(KW/HP) : 969/1300
- Rated Stroke (SPM) :120
- Inlet Connection : 12" (305mm)
- Outlet Connection: 5 1/8" Flange 5000PSI
- Weight(Kg/Pound); 24572/54170
- Gear Type: Herringbone Gear
- Gear Ratio : 4.206:1
- Valve Cavity : API-7#
- Overall Dimension(L*W*H) : 4615*3276*2688m
| Item | F500 | F800 | F1000 | F1300 | F1600 |
| Power Rating HP(kw) | 500 (373) | 800 (597) | 1000 (746) | 1300 (969) | 1600 (1193) |
| Stroke RatingSPM | 165 | 150 | 140 | 120 | 120 |
| Stroke Length(in /mm) | 7.5" /190.5 | 9" /228.6 | 10" /254 | 12" /305 | 12" /305 |
| Gear Ratio | 4.286 | 4.185 | 4.207 | 4.206 | 4.206 |
| Inlet Dia. (in/mm) | 8"/203 | 10"/254 | 12"/305 | 12"/305 | 12"/305 |
| Outlet Dia. (in) | 4" Flange
5000psi | 5-1/8" Flange
5000psi | 5-1/8" Flange
5000psi | 5-1/8" Flange
5000psi | 5-1/8" Flange
5000psi |
| Valve | API5# | API6# | API6# | API7# | API7# |
| Max. Liner (in/mm) | 6-3/4"/170 | 6-3/4"/170 | 6-3/4"/170 | 7"/180 | 7"/180 |
| Overall Dimension L*W*H(mm) | 3658*2709
*2231 | 3963*3025
*2410 | 4267*3167
*2580 | 4617*3260
*2600 | 4615*3276
*2688 |
| Approx. Weight (kg) | 9770 | 14500 | 18790 | 24572 |
| Stroke per Minute | Liner size (mm) and Pressure Rating(Mpa) /(psi) | |||||
| 180 | 170 | 160 | 150 | 140 | 130 | |
| 18.7
2712 | 21
3045 | 23.7
3437 | 27
3915 | 31
4495 | 34.5
5000 | |
| Displacement (L/S) /(gpm) | ||||||
| 120 | 46.54
737 | 41.51
658 | 36.77
583 | 32.32
512 | 28.15
446 | 24.27
385 |
| 110 | 42.66
676 | 38.05
603 | 33.71
534 | 29.62
469 | 25.81
409 | 22.25
352 |
| 100 | 38.78
614 | 34.59
548 | 30.64
485 | 26.93
427 | 23.46
372 | 20.23
320 |
| 90 | 34.9
553 | 31.13
493 | 27.58
437 | 24.24
384 | 21.11
334 | 18.21
288 |
| Based on 100% volumetric efficiency and 90% mechanical efficiency | ||||||
| Stroke per Minute | Liner size (in) and Pressure Rating(Mpa) /(psi) | |||||
| 7 | 6-3/4 | 6-1/4 | 6 | 5-1/2 | 5 | |
| 19.17
2780 | 20.65
2994 | 24.07
3490 | 26.16
3793 | 31.13
4539 | 35
5075 | |
| Displacement (L/S) /(gpm) | ||||||
| 120 | 45.41
720 | 42.23
669 | 36.20
574 | 33.36
529 | 28.04
444 | 23.17
367 |
| 110 | 41.63
660 | 38.71
614 | 33.19
526 | 30.58
485 | 25.70
407 | 21.24
337 |
| 100 | 37.84
600 | 35.19
558 | 30.17
478 | 27.80
441 | 23.36
370 | 19.31
306 |
| 90 | 34.06
540 | 31.67
502 | 27.15
430 | 25.02
397 | 21.03
333 | 17.38
275 |
| Based on 100% volumetric efficiency and 90% mechanical efficiency | ||||||
FAQs of F1600 1600HP API Crude Oil Drilling Mud Pump For Drilling Rig:
Q: What is the material used to make the F1600 1600HP API Crude Oil Drilling Mud Pump?
A: The F1600 1600HP API Crude Oil Drilling Mud Pump is made of high-quality stainless steel material.Q: What is the suction type of the F1600 1600HP API Crude Oil Drilling Mud Pump?
A: The F1600 1600HP API Crude Oil Drilling Mud Pump features a normal suction type.Q: Is the F1600 1600HP API Crude Oil Drilling Mud Pump suitable for use in harsh environments?
A: Yes, the F1600 1600HP API Crude Oil Drilling Mud Pump is suitable for use in harsh environments due to its sealed seals type.Q: What is the power output of the F1600 1600HP API Crude Oil Drilling Mud Pump?
A: The F1600 1600HP API Crude Oil Drilling Mud Pump has a power output of 1600HP.Q: What is the ideal application of the F1600 1600HP API Crude Oil Drilling Mud Pump?
A: The F1600 1600HP API Crude Oil Drilling Mud Pump is ideal for drilling oil wells and is highly effective in handling crude oil.Enter Buying Requirement Details
